The 3241 Type Globe Control Valves offer a modular design, reducing the number of parts needed and ensuring compatibility across various sizes. They feature up to 11 Cv coefficients in increments of 1.6 and require only four parts for a rebuild: seat, plug, body gasket, and packing. Standard with TA-Luft/EPA Low Emissions self-adjusting PTFE V-ring packing, these valves have bonnets, yokes, and bodies made from identical materials to suit process needs. Sizes range from 1/2" to 12", with ANSI Classes from 150 to 2500. Materials include Cast Iron, Carbon Steel, Stainless Steel, Monel, and Hastelloy, with a temperature range of -325 to 842°F (-196 to 450°C).

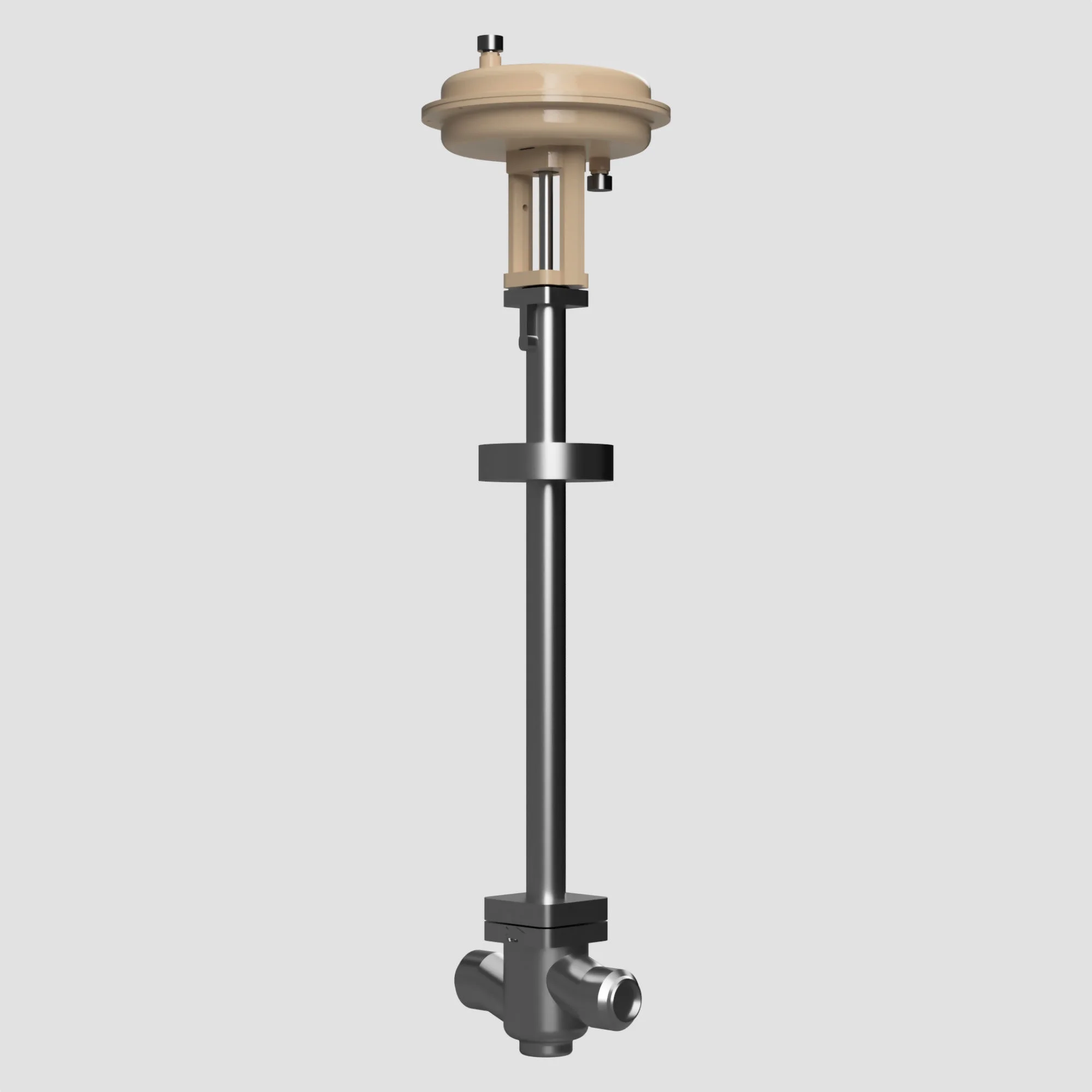

The 3246 Type Cryogenic Globe Control Valves offer versatile mounting, with customer-specified height and end connections. Featuring a bellows seal to minimise heat conduction and prevent valve stem freezing, these valves are available in cold-resistant stainless steel or aluminium. The seat-plug trim is replaceable without disassembly. Sizes range from 1/2" to 10", ANSI Class 150-900, in cast stainless steel (A351 CF8), suitable for temperatures between -325 to 149°F (-196 to 65°C).

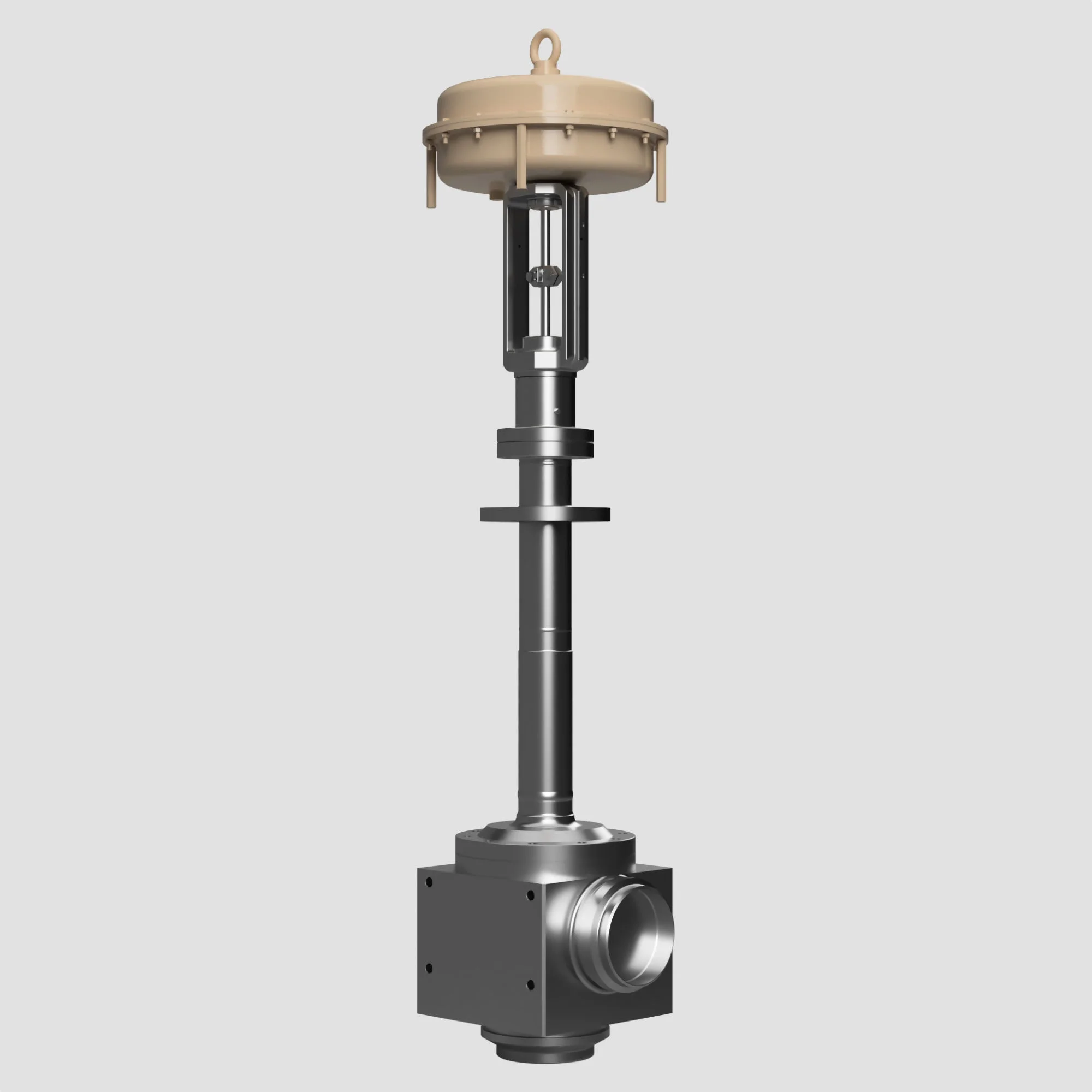

The GV-3248 Type Top-Entry Cryogenic Globe Control Valves, available in sizes 1" to 6" and ANSI Class 150 to 600, feature a versatile design allowing for any mounting position. Constructed from cast stainless steel (A351 CF8) with options for cold-resisting stainless steel or aluminium bodies, these valves ensure operational efficiency between -425 to 149°F (-254 to 65°C). Their innovative bellows seal minimises heat conduction, preventing valve stem freeze-up, while the seat-plug trim is easily replaceable without valve disassembly. Customisable overall height and end connections meet specific requirements.

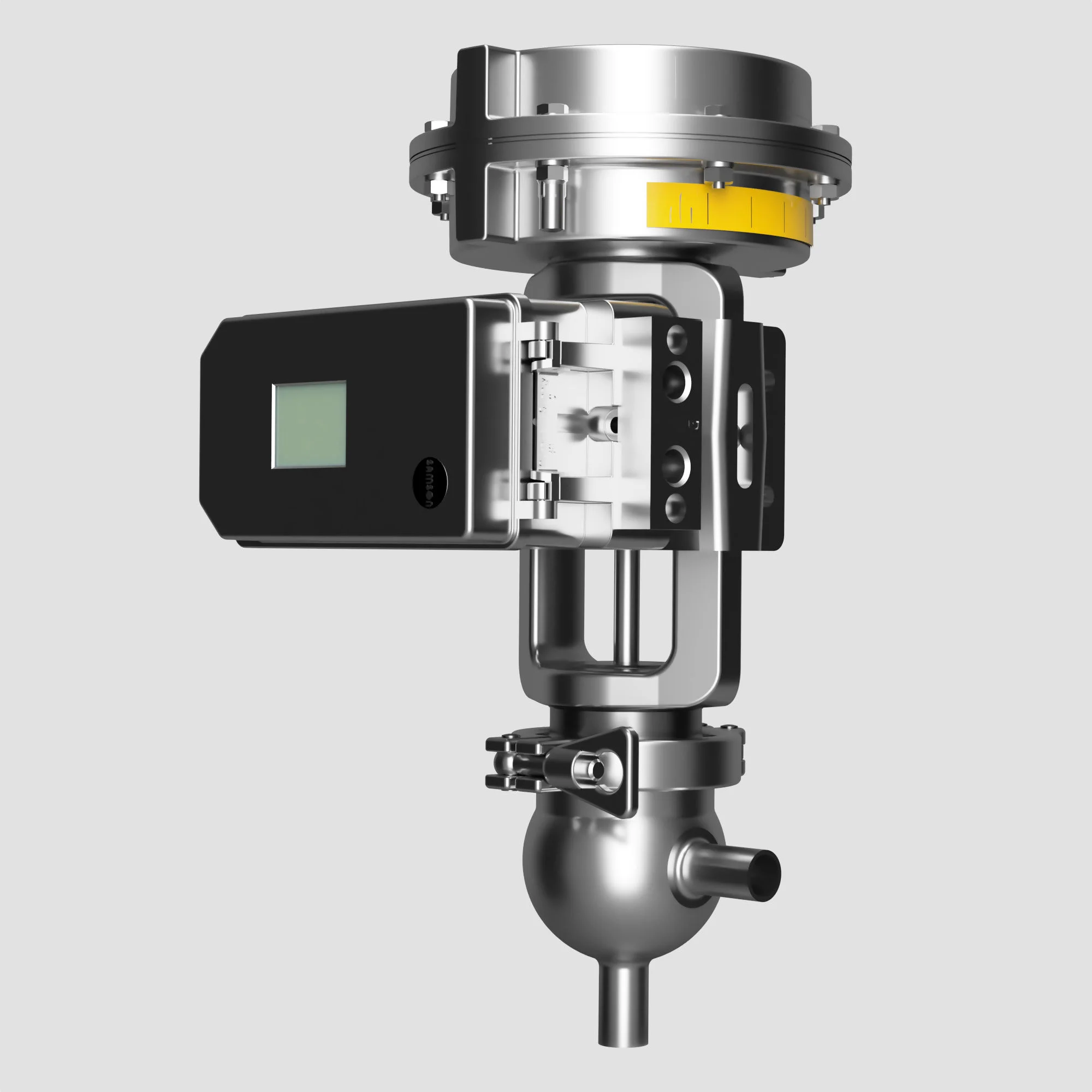

The 3249 Type Aseptic Globe Control Valves feature a cast stainless steel body, eliminating dead space and ensuring self-draining for optimal SIP/CIP/DIP cleaning. With FDA/USDA compliant sealing materials, this valve offers excellent stem guidance and minimal parts, reducing micro-organism build-up. Its design includes diaphragm leak detection and an inspectable gap between valve and actuator. Sizes range from 1/2" to 4", with ANSI Class 150 and materials of Forged Stainless Steel A182 F316, suitable for temperatures between 32 to 320°F.

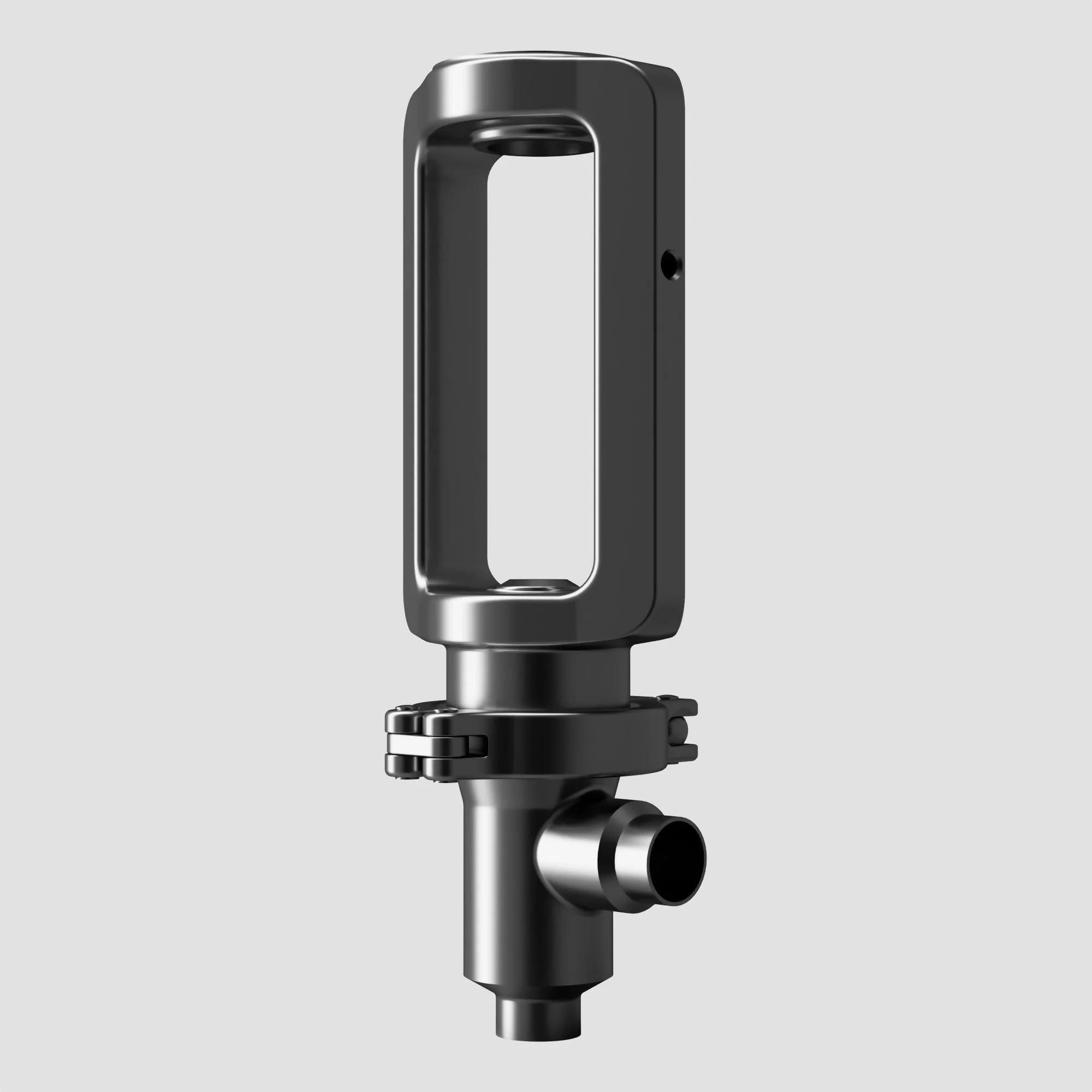

The 3347 Type Hygienic Angle Globe Control Valves feature a cast stainless steel body free of dead space, ensuring self-draining and suitability for SIP/CIP/DIP processes. With FDA/USDA compliant wetted sealing materials and lubricants, these valves offer excellent stem guiding and minimal micro-organism retention due to fewer components. The design includes an open space for easy inspection, a detachable actuator, and clamps for quick gasket and plug changes. EHEDG-certified for cleaning, they range from 1/2" to 4" with ANSI Class 150 and operate between 32 to 300°F (0 to 150°C).

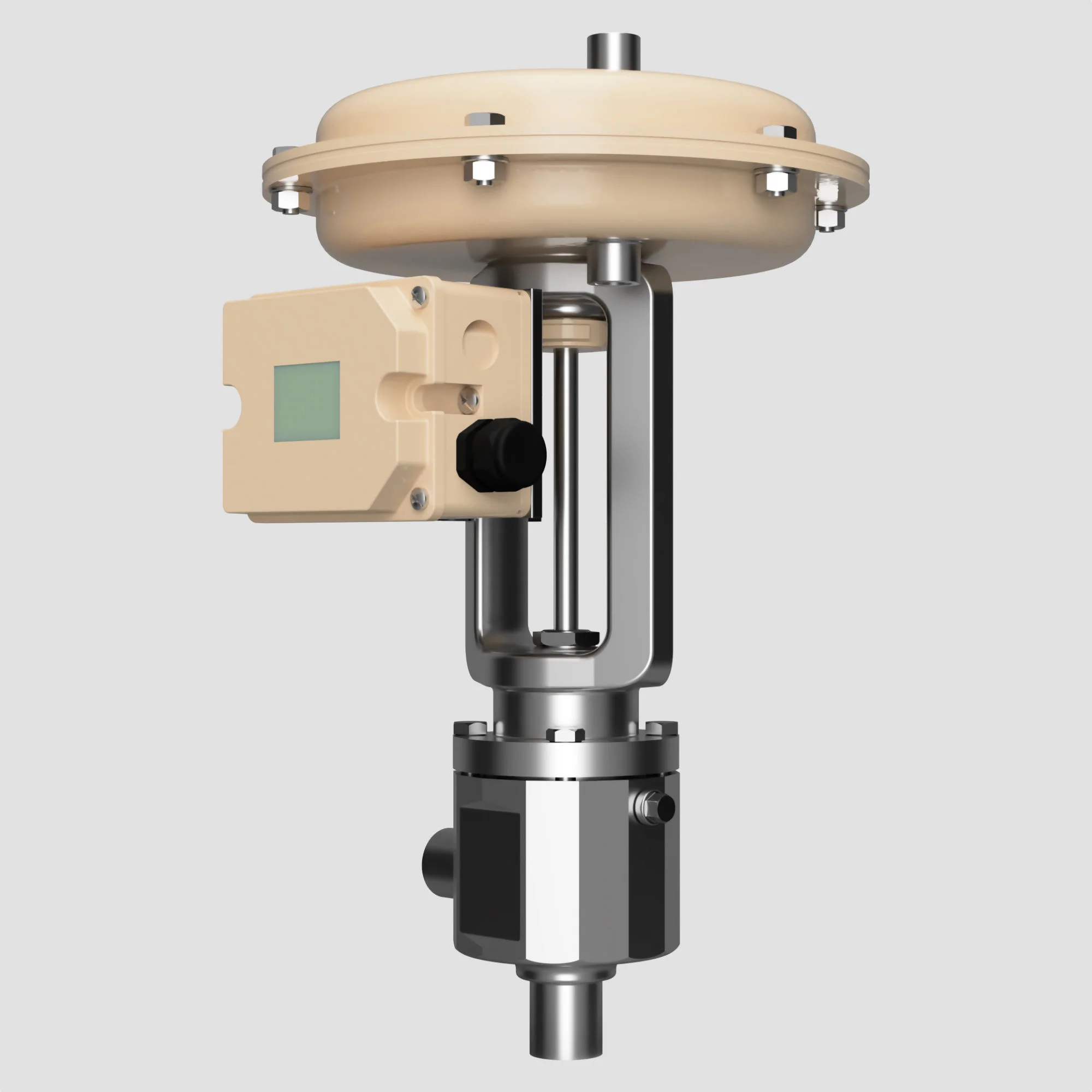

The 3349 Type Aseptic Angle Globe Control Valves, featuring a cast stainless steel body free from dead spaces, excel in self-draining capabilities suitable for SIP, CIP, and DIP processes. Their design ensures compliance with FDA/USDA standards for wetted sealing materials and lubricants, providing superior stem guidance and reducing micro-organism build-up through minimal component use. With diaphragm leak detection, easy actuator removal, and EHEDG-certified cleaning efficacy, these valves offer a size range of 1/2" to 2", ANSI Class 150, and a temperature range of 32 to 320°F (0 to 160°C).

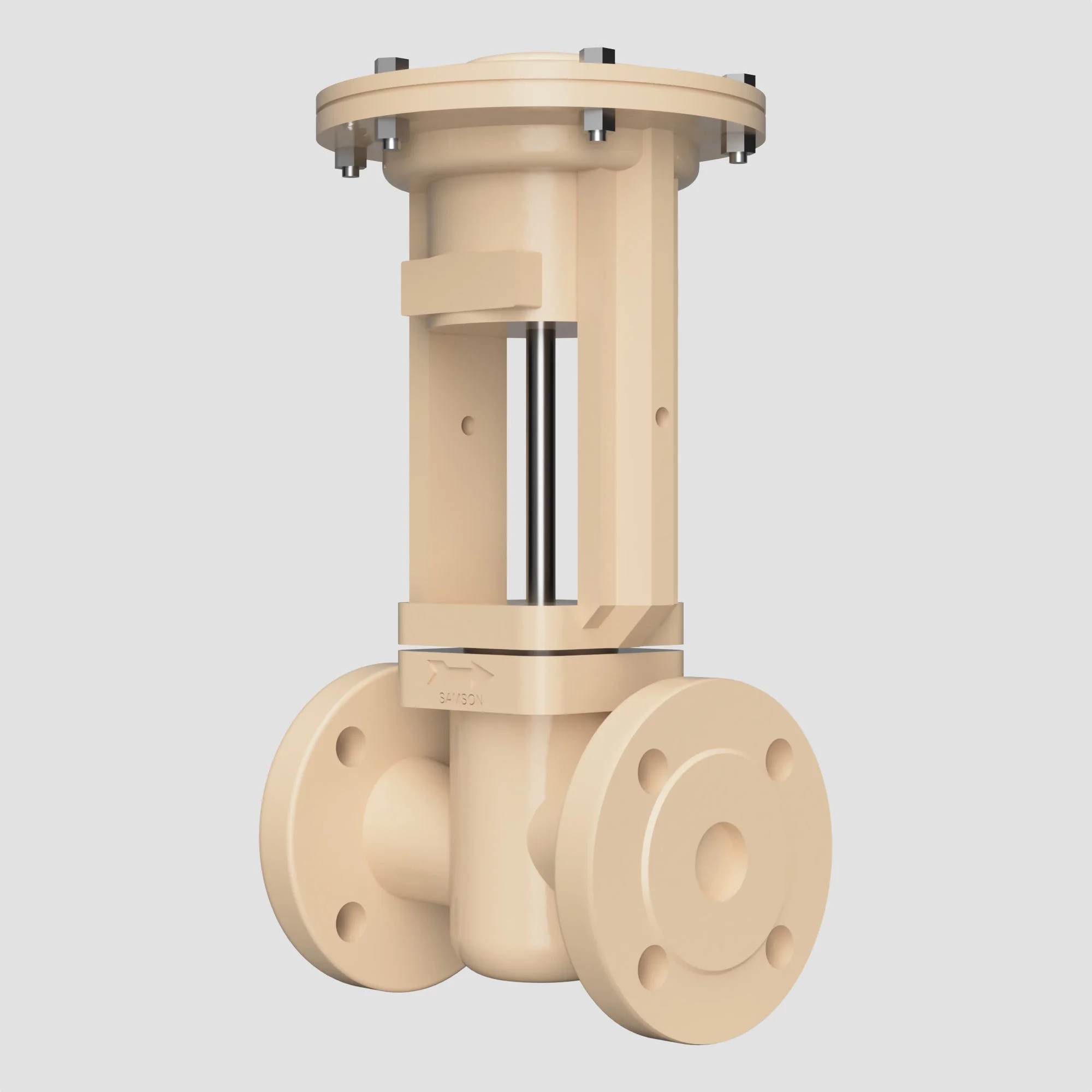

The 3351 Type ON/OFF Globe Control Valves, featuring a compact pneumatic design, facilitate the easy addition of a hand wheel, metal bellows seal, and thermal extensions. Both the bonnet and body are constructed from identical materials, ensuring process compatibility. These valves offer Class VI shut-off with a PTFE insert in the plug, suitable for sizes ranging from 1/2" to 4" and ANSI Class 150 to 300. Available in carbon steel and stainless steel, they operate within a temperature range of -58 to 482? (-50 to 250?).
