HVAC Application Globe Control Valves

HVAC application globe control valves play a critical role in regulating the flow of fluids within heating, ventilation, and air conditioning systems. These valves are engineered to provide precise control over temperature, pressure, and flow rates, ensuring optimal performance and energy efficiency. By accurately modulating the flow of air, water, or steam, they help maintain desired environmental conditions within buildings while minimising energy consumption and operational costs.

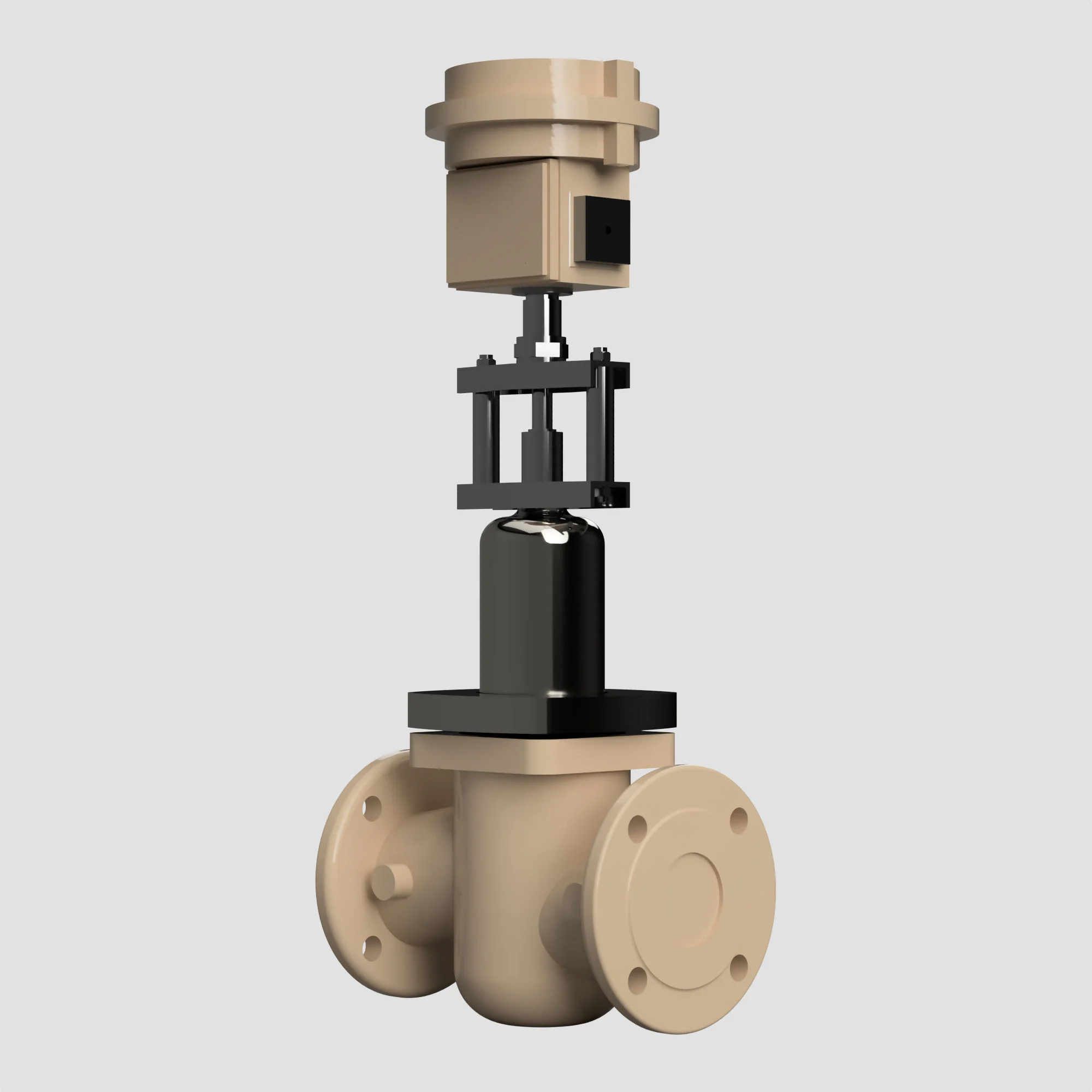

3214 Type Globe Control Valves

The Type 3214 balanced single-seated globe valve has been specifically engineered for use in HVAC applications. These valves can be paired seamlessly with a range of actuators—including pneumatic, electric, hydraulic, or electro-hydraulic options—all available through the SAMSON group, to form a comprehensive control valve system. Embracing a modular assembly approach, these control valves can easily integrate with SAMSON GROUP actuators and a variety of valve accessories, including positioners, limit switches, and solenoid valves, ensuring versatile and efficient operation.

Size Range: DN65 - DN400 (2.5" - 16")
ANSI Class Range: 125 to 150
Available Materials: Cast Iron, Carbon Steel
Temperature Range: Upto 150°C
Find Out More

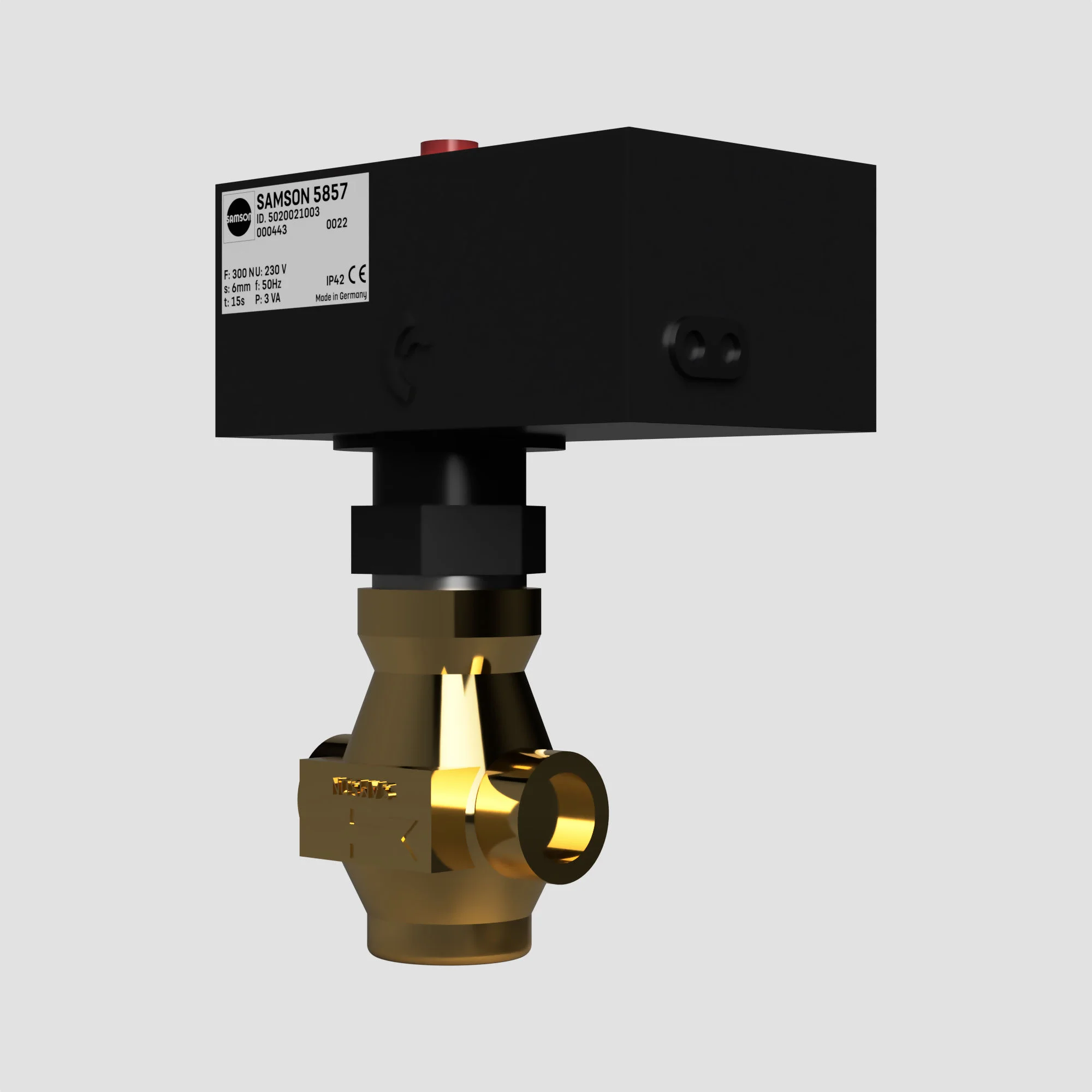

3222 Type Globe Control Valves

The Type 3222 globe valve is utilised within heating, ventilation, and air-conditioning systems. It can be paired with a pneumatic, electric, hydraulic, or electro-hydraulic actuator, all available from the SAMSON group, to form a comprehensive control valve setup. Adhering to a modular assembly approach, these control valves can integrate seamlessly with SAMSON GROUP actuators and valve accessories, including positioners, limit switches, and solenoid valves.

Size Range: DN15 - DN50 (1/2" - 2")
ANSI Class Range: 250
Available Materials: Red Brass ASTM B62
Temperature Range: Upto 200°C
Find Out More

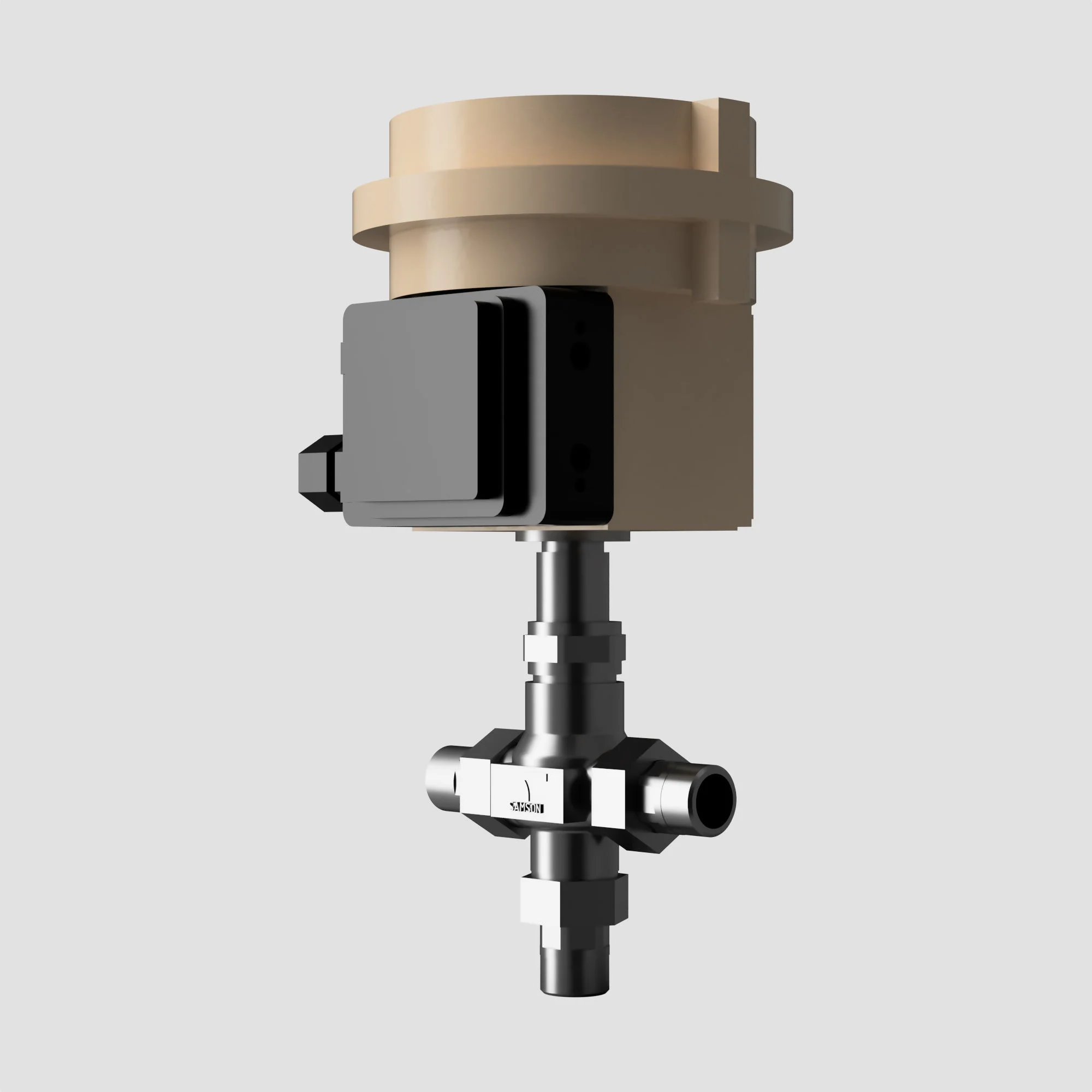

3226 Type Globe Control Valves

The Type 3226 three-way valve serves as both a mixing and diverting valve, tailored for integration into heating, ventilation, and air-conditioning (HVAC) systems. This versatile valve model accommodates various actuator options, including pneumatic, electric, hydraulic, or electro-hydraulic actuators, all available from the SAMSON group, ensuring seamless integration into the control valve assembly. Engineered with a modular assembly approach in mind, these control valves can be effortlessly outfitted with SAMSON GROUP actuators and an array of valve accessories, such as positioners, limit switches, and solenoid valves, enhancing their adaptability and functionality.

Size Range: DN15 - DN50 (1/2" - 2")
ANSI Class Range: 250
Available Materials: Red Brass ASTM B62
Temperature Range: -15 to 15°C
Find Out More

Frequently Asked Questions

Globe valves are versatile and find application in various industries due to their ability to control the flow of fluids precisely. One of the primary applications of globe valves is for flow regulation. Their design allows for fine control over the flow rate by adjusting the position of the valve plug in relation to the seat.

Globe valves provide precise control over the flow of fluids, making them well-suited for applications where accurate regulation of steam flow is crucial. This is particularly important in steam systems where maintaining a specific pressure or temperature is essential.

Globe valves are versatile components widely used in industries such as water supply, power generation, oil and gas, chemical processing, HVAC, steam systems, shipbuilding, and pulp and paper.

A globe valve is a type of linear motion valve that is widely used in various industries to control the flow of fluids. It consists of a movable disk or plug and a stationary ring seat in a spherical body.

Globe valves can be used for on/off service, acting as isolation valves, and they are also well-suited for throttling applications where precise control of flow rates is required. The design of the valve allows for both functions, making them versatile in different industrial processes.

Globe valves find widespread application in industries such as water supply, power generation, oil and gas, chemical processing, HVAC systems, steam distribution, and shipbuilding. Their versatility makes them suitable for various fluid control applications.

Maintenance of globe valves typically involves tasks like lubricating moving parts, inspecting the valve seat for wear, checking for leaks, and ensuring that the valve operates smoothly. Bolted bonnet designs facilitate easy access for maintenance activities. Regular maintenance ensures the longevity and proper functioning of globe valves in industrial systems.

A globe valve is a type of linear motion valve that is widely used in various industries to control the flow of fluids. It is named for its spherical body shape. The key components of a globe valve include a movable disk or plug and a stationary ring seat inside the valve body. The valve operates by moving the plug or disk relative to the seat to control the flow of fluid through the valve.

Considerations include the type of fluid, pressure and temperature requirements, flow rate, materials compatibility, and the need for on/off or throttling control. Understanding these factors ensures the proper selection of a globe valve for a given industrial application.

Yes, globe valves can be automated for remote control. Common actuators include electric, pneumatic, and hydraulic actuators. Automation enhances efficiency in large-scale industrial processes and allows for integration into sophisticated control systems.

The bolted bonnet design allows easy access to internal components for inspection and maintenance. This feature simplifies tasks such as replacing the valve seat, checking for wear, and performing necessary repairs, contributing to the longevity and reliability of the valve.

Look for markings or labels on the valve body that indicate the manufacturer's name or logo. Check for any model numbers, serial numbers, or other identification codes that can be used for reference or replacement purposes.
