The 3251 Type Heavy Duty Globe Control Valves offer a modular design, minimising parts needed and ensuring part commonality across sizes, with 13 Cv coefficients in 1.6 steps. Rebuilding requires only four components: seat, plug, gasket, and packing. Both bonnet and body share material composition for process compatibility. Specifications include sizes from 1/2" to 12", ANSI class 150 to 2500, and materials like Carbon Steel and Stainless Steel. Temperature tolerance spans -325 to 1022°F, catering to diverse industrial applications.

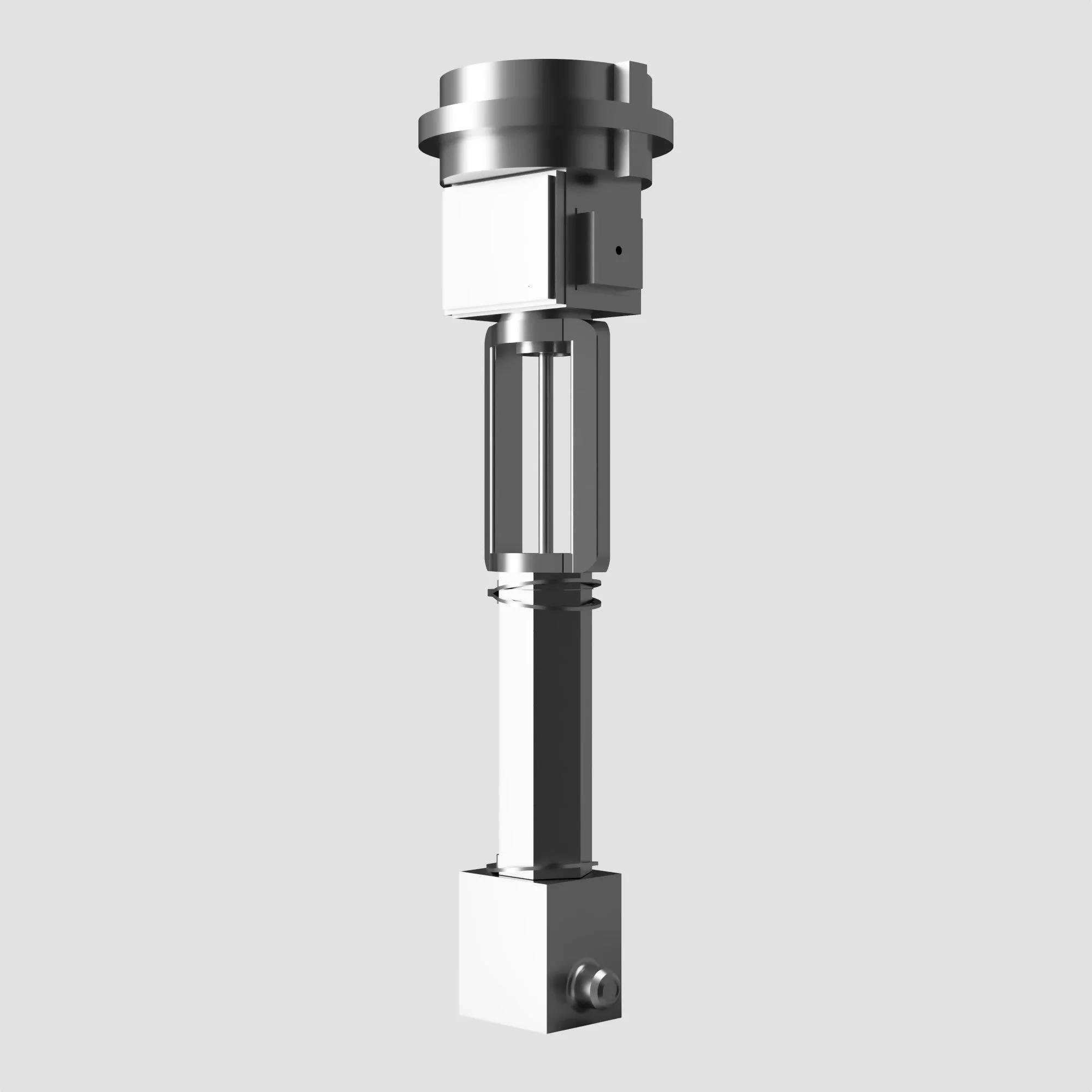

The 3252 Type High Pressure Globe Control Valves feature a modular design, reducing the number of parts needed and ensuring part commonality across different sizes. With up to 9 Cv coefficients in steps of 1.6 per size, these valves require only four components for a rebuild: seat, plug, body gasket, and packing. Both bonnet and body are made from forged stainless steel, suitable for a wide temperature range of -325 to 842°F (-196 to 450°C), and available in sizes 1/2" to 1" with ANSI Class 150 to 2500.

The 3253 Type Heavy Duty 3-Way Globe Control Valve features a modular design for streamlined maintenance, requiring only four parts for rebuilding: seat, plug, body gasket, and packing. Its bonnet and body, made from identical materials, ensure process compatibility. Available in sizes from 1/2" to 20" and ANSI Classes 150 to 2500, it accommodates a wide range of applications with carbon steel or stainless steel options and a temperature range of -325 to 1022°F (-196 to 550°C).

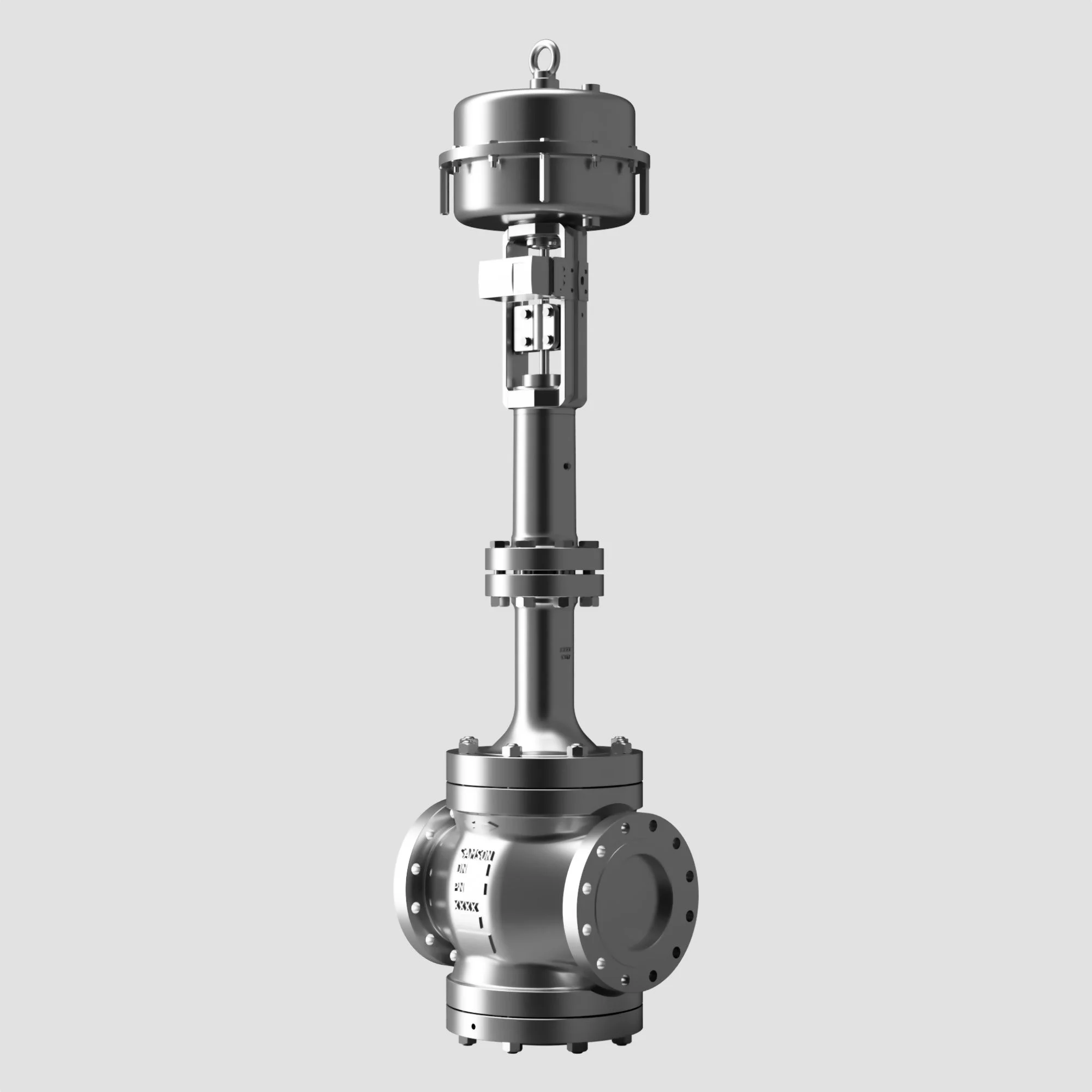

The 3254 Type Double-Guided Globe Control Valves feature a modular design, streamlining maintenance with common parts across different sizes and requiring only four components for a rebuild: seat, plug, body gasket, and packing. Available in sizes 3" to 20" and ANSI Classes 150 to 2500, they offer up to five Cv coefficients, incrementing by 1.6, ensuring process compatibility with bonnet and body constructed from identical materials, suitable for temperatures ranging from -325 to 1022°F (-196 to 550°C).

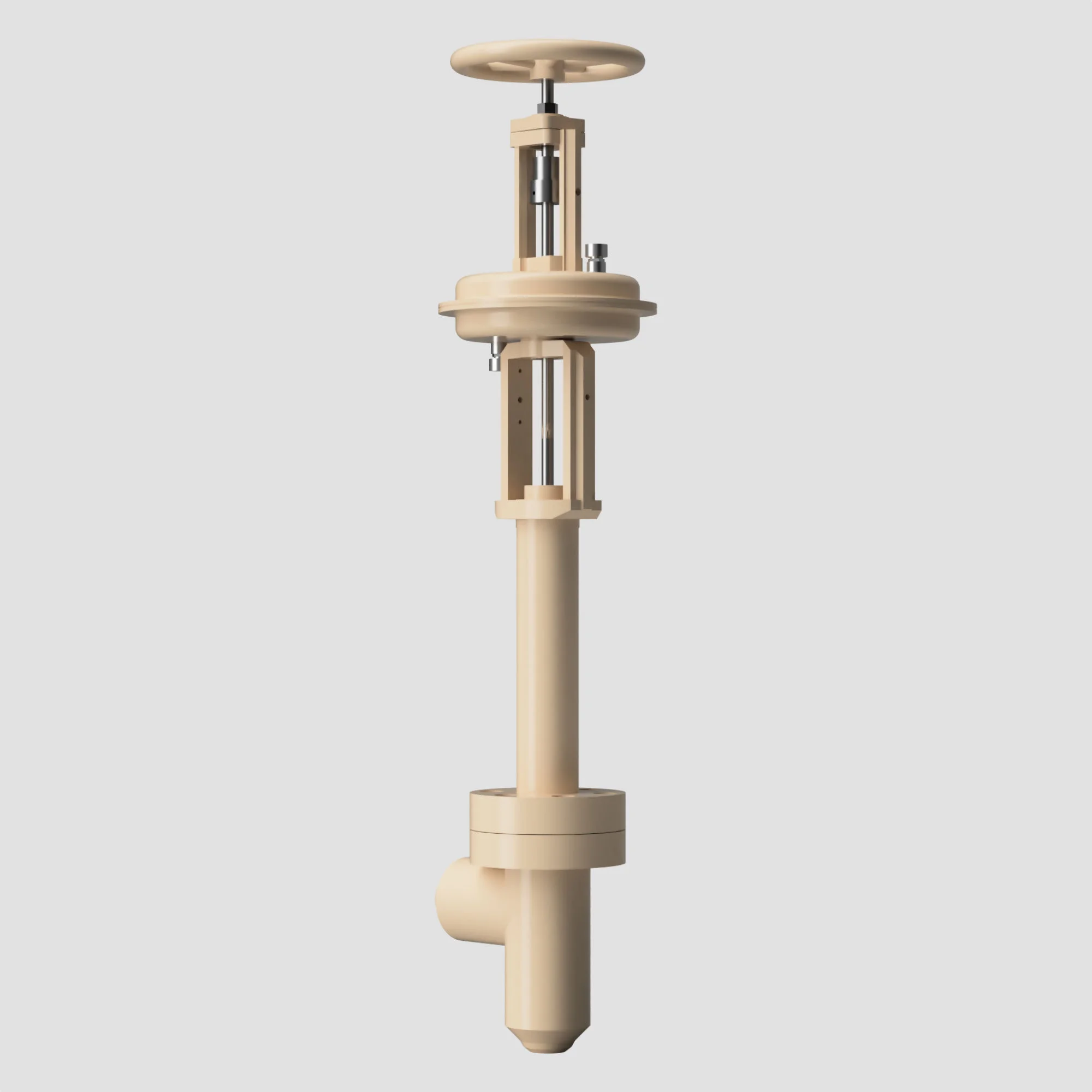

The 3256 Type Heavy Duty Angled Globe Control Valves offer a modular design, simplifying maintenance with common parts across sizes and requiring only four components for overhaul: seat, plug, body gasket, and packing. They feature up to 5 Cv coefficients in increments of 1.6, ensuring precision flow control. Available in sizes from 1/2" to 20" and ANSI Classes 150 to 2500, these valves are constructed from Carbon Steel or Stainless Steel, suitable for temperatures ranging from -325 to 1022°F (-196 to 550°C), highlighting their versatility for diverse industrial applications.

The 3291 Type Heavy Duty Globe Control Valves offer a maintenance-friendly design, eliminating the need for special tools during assembly. Available in sizes from 1/2" to 8" and ANSI classes 150 to 900, these valves come in carbon steel or stainless steel. With temperature ranges between -325 to 842°F (-196 to 450°C) and up to 13 Cv coefficients for each valve size, the bonnet and body's matching materials ensure process compatibility.

The 3296 Type Heavy Duty Angled Globe Control Valves are designed for ease of maintenance, eliminating the need for special tools during assembly. Offering up to 13 Cv coefficients across sizes ranging from 1/2" to 8", they ensure process compatibility with bonnet and body constructed from identical materials. Suitable for use in temperatures from -325 to 842°F (-196 to 450°C) and available in carbon steel or stainless steel, these valves meet ANSI Class 150 to 900 specifications, catering to diverse industrial requirements.

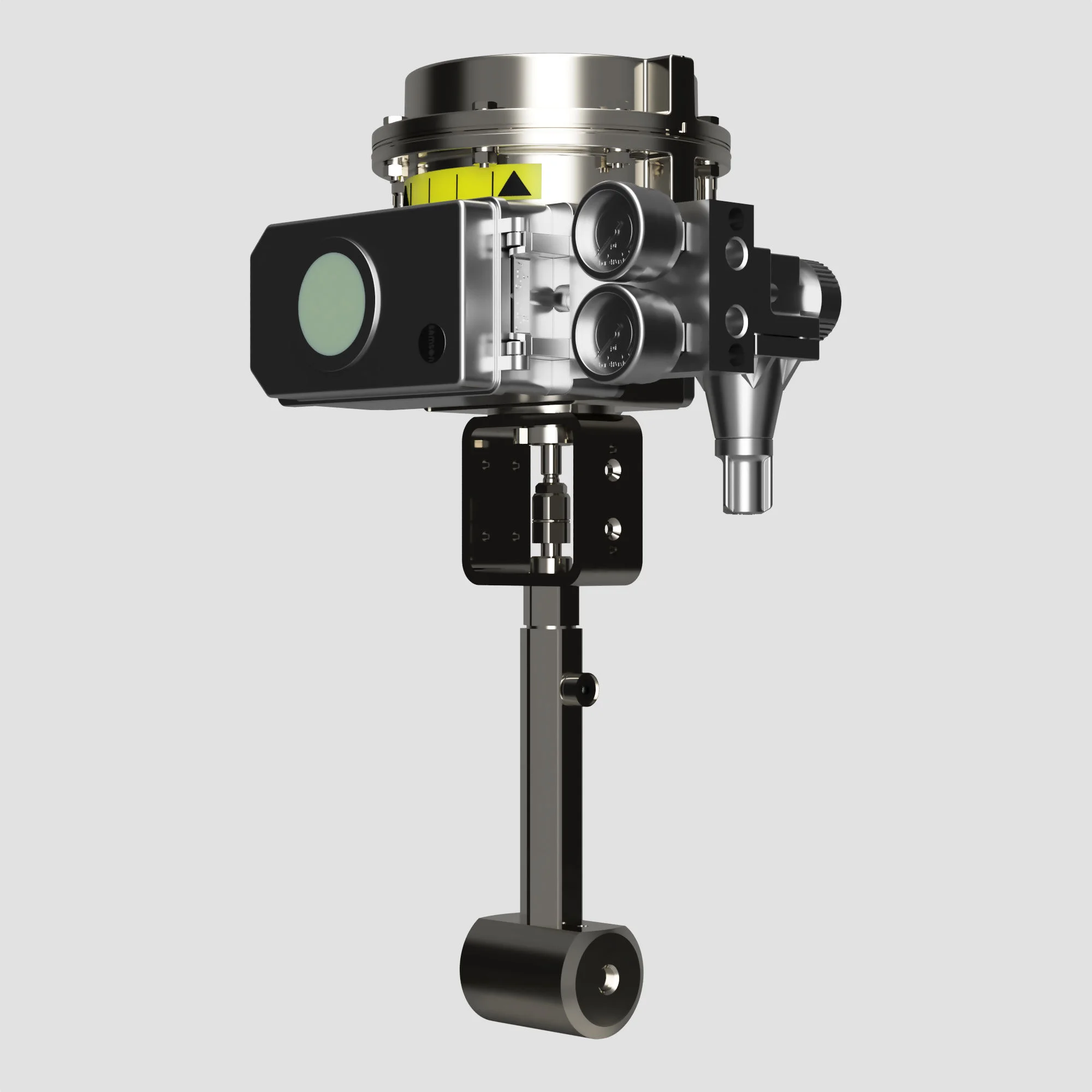

The 3510 Type Microflow Globe Control Valves offer a modular design, minimising parts needed and ensuring part commonality across sizes, enhancing maintenance efficiency. They feature up to 22 Cv coefficients, adjustable in 1.6 steps, and cater to micro-level flow rates starting from a Cv of 0.00012. Rebuilding is straightforward, requiring just four components: seat, plug, body gasket, and packing. Both bonnet and body are constructed from identical materials for optimal process compatibility. Sizes range from 1/4" to 1", with ANSI Class 150 to 2500, in forged stainless steel, and a temperature range of -325 to 842°F (-196 to 450°C).

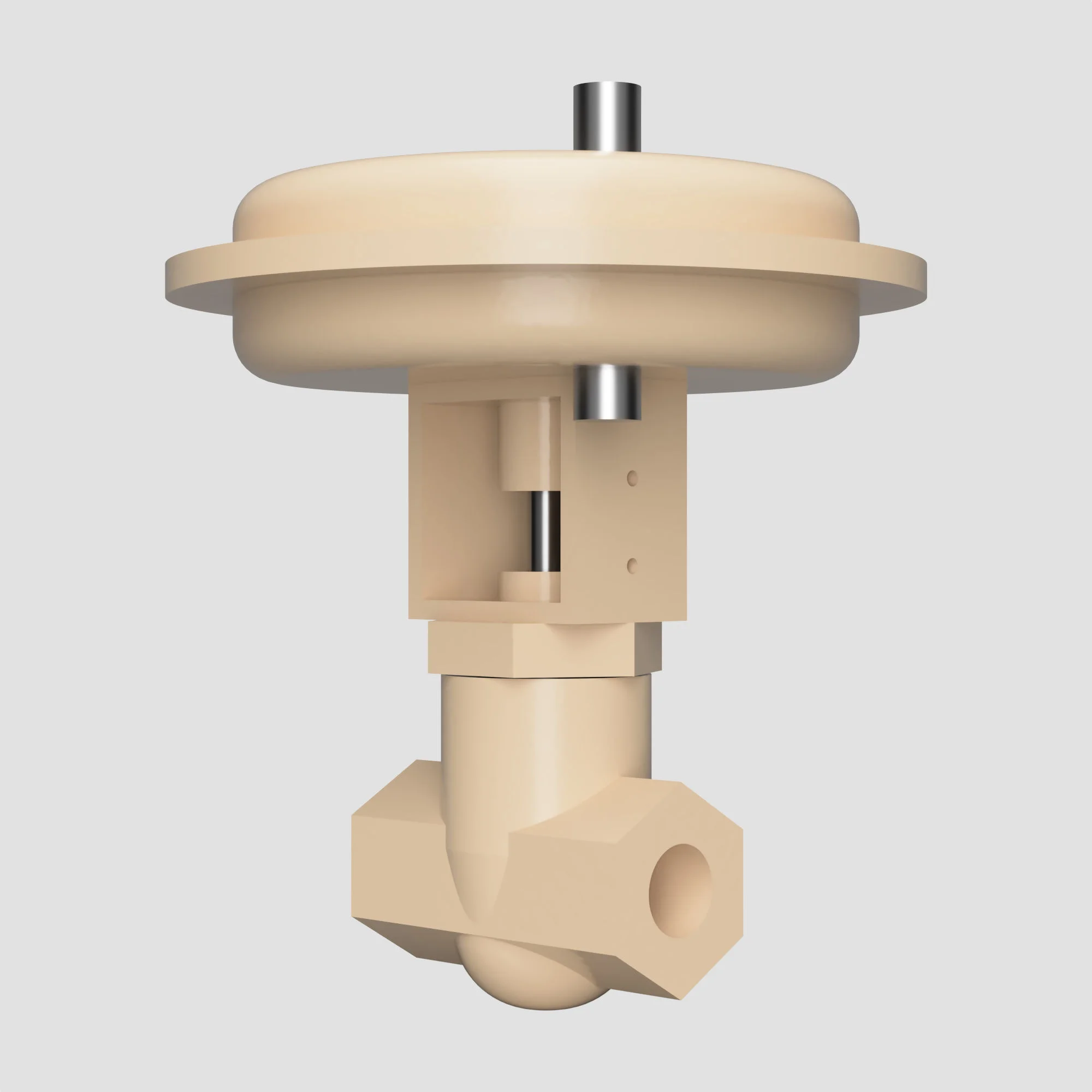

The 3525 Type Big Tex Globe Control Valves feature an effortless yoke and valve body separation, with a large hex for straightforward bonnet detachment ensuring safe pressure release. The design permits easy seat removal using a hex key, and large hex ends facilitate secure installation and removal. These valves are available in sizes from 1" to 3", with ANSI Classes ranging from 600 to 1500. Made from cast steel A352 LCC, they operate within a temperature range of -50 to 300°F (-46 to 149°C).

The 3591 Type Heavy Duty Cage Globe Control Valves, suitable for severe service conditions, are available in sizes 16" to 32" and ANSI Classes 150 to 900. Their design features a seat clamped by cage for sizes up to NPS 8 and a flanged seat for larger sizes, ensuring easy maintenance without the need for special tools. Offering the highest Cv values among globe control valves, they are constructed from carbon steel or stainless steel and operate within a temperature range of -50 to 932°F (-46 to 500°C).
