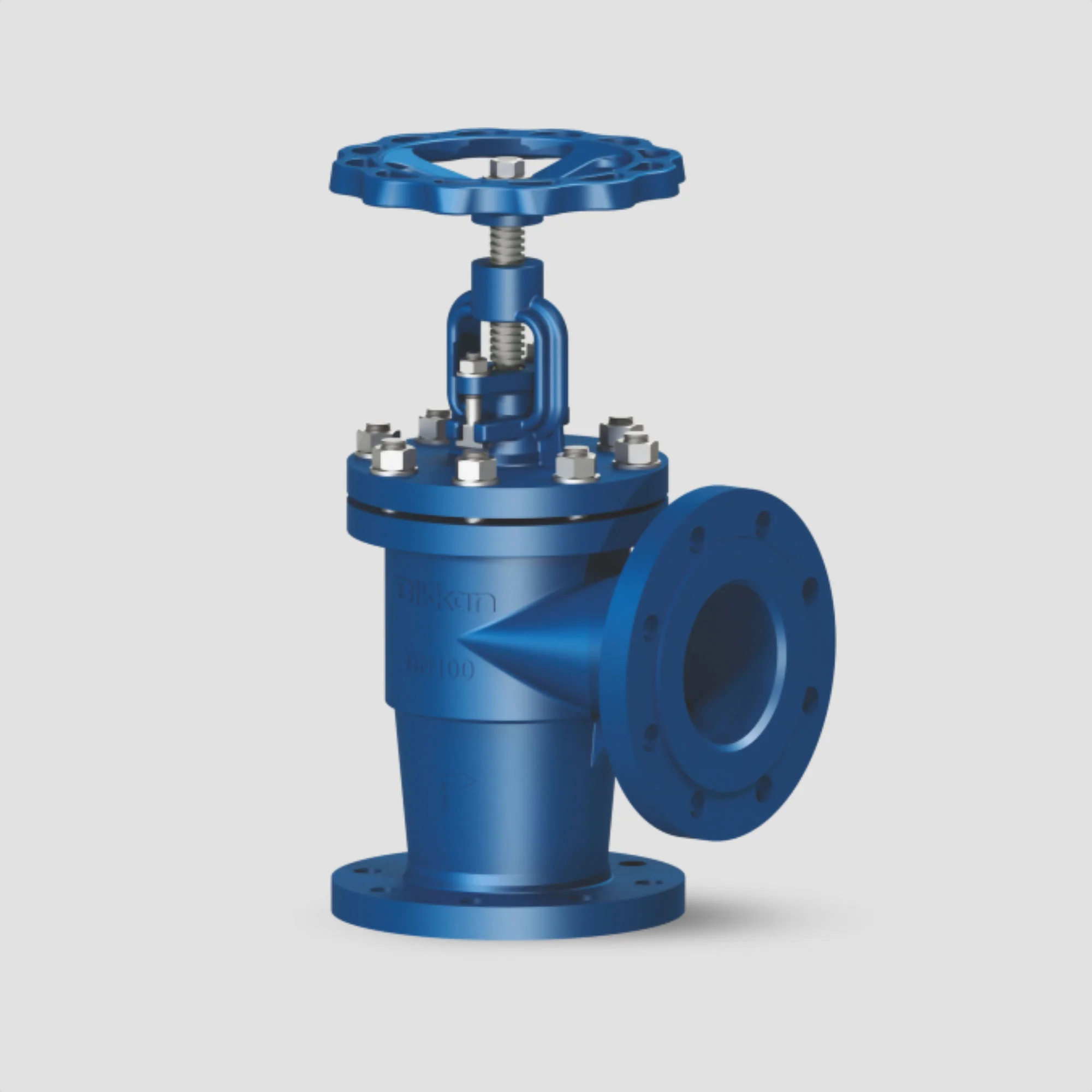

Cast Steel Angled Globe Valves

Cast Steel Angled Globe Valves are essential components in industrial pipelines, renowned for their durability and efficient flow control capabilities. These valves, constructed from cast steel, offer superior performance in managing fluid flow within industrial settings. With their angled design, they excel at regulating the movement of liquids and gases, ensuring seamless operation. Designed to withstand rigorous conditions, these valves are highly reliable, making them a preferred choice for industrial applications. Their robust construction ensures longevity, making them a valuable asset in managing fluid systems efficiently.

Cast Steel Angled Regulating Disk Bolted Bonnet Globe Valves

Cast Steel Angled Regulating Disk Bolted Bonnet Globe Valves are precision-engineered flow control devices designed to efficiently manage the flow of liquids or gases in various industrial applications. These valves boast a durable cast steel construction and a unique angled regulating disk design, ensuring reliable performance and long-lasting durability. With a bolted bonnet design, they offer secure sealing, preventing leaks and ensuring the integrity of your system. These globe valves are ideal for controlling fluid flow in a wide range of industries, providing an essential component for fluid management systems.

Size Range: DN15 - DN600
Body Materials: Cast Steel
Body Type: Two Piece
Applications: Steam, Cold and Hot Water, Oil and Gases and Aggresive Media
Pressure Rating: PN10, PN16
End Connections: Flanged
Find Out More

Cast Steel Angled SDNR Bolted Bonnet Globe Valves

The Cast Steel Angled SDNR Bolted Bonnet Globe Valves offer dependable performance and long-lasting durability for industrial applications. These valves feature a sturdy construction, ensuring reliable fluid control and minimal maintenance requirements. Designed for seamless integration into various systems, they provide efficient flow regulation, making them a valuable choice for fluid management needs.

Size Range: DN15 - DN600
Body Materials: Cast Steel
Body Type: Two Piece
Applications: Steam, Cold and Hot Water, Oil and Gases and Aggresive Media, Higher Temperatures and Pressures.
Pressure Rating: PN16
End Connections: Flanged
Find Out More

Cast Steel Angled SDNR Spring Bolted Bonnet Globe Valves

Cast Steel Angled SDNR Spring Bolted Bonnet Globe Valves are precision-engineered flow control devices designed to regulate the flow of liquids or gases within pipelines efficiently. These valves feature a durable cast steel construction, ensuring long-lasting performance in industrial applications. With their angled design and spring bolted bonnet, they provide a reliable and secure sealing mechanism. Ideal for various industries, these valves offer dependable flow control without compromising on safety, making them a trusted choice for fluid management solutions.

Size Range: DN15-DN600 (1/2" - 24")
Body Material: Cast Steel
Standard: DIN EN 13709 SDNR Type (DIN 3356)
Applications: Hot & Cold Water, Steam, Oil, Gases, Aggressive Media, Higher Temperatures and Pressures
Pressure Range: PN4 (DN400-600), PN6 (DN350), PN10 (DN250-300), PN16 (DN15-200)
End Connection: Flanged
Find Out More

Cast Steel Angled Stop Bolted Bonnet Globe Valves

Cast Steel Angled Stop Bolted Bonnet Globe Valves offer reliable and efficient control of fluid flow in industrial settings. These valves are constructed from high-quality cast steel materials, ensuring durability and long-lasting performance. Featuring an angled stop design and a bolted bonnet, these valves provide secure closure and easy maintenance. They are ideal for various applications where precise flow regulation is essential, making them a valuable component in fluid handling systems.

Size Range: DN15-DN600 (1/2" - 24")
Body Material: Cast Steel
Standard: DIN EN 13709 STOP Type (DIN 3356)
Applications: Steam, Hot & Cold Water, Oil & Gases, Used for Aggressive Media, higher Temperatures and Pressures
Pressure Range: PN4 (DN400-600), PN6 (DN350), PN10 (DN250-300), PN16 (DN15-200)
End Connection: Flanged
Find Out More

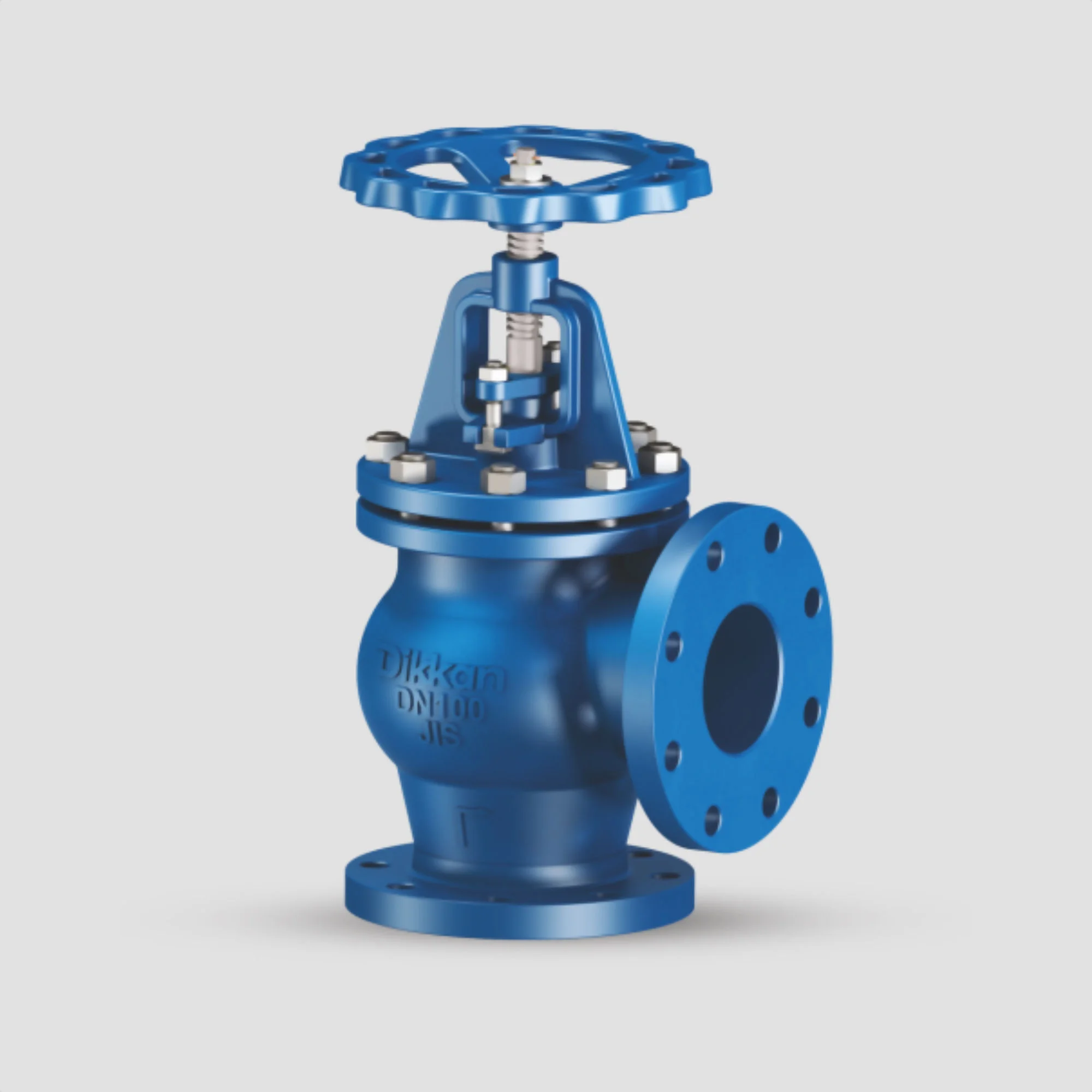

Cast Steel Angled JIS SDNR Globe Valves

Cast Steel Angled JIS SDNR Globe Valves, designed for industrial applications, offer reliable control of fluid flow with their sturdy construction. These valves, compliant with Japanese Industrial Standards (JIS), ensure efficient and precise regulation of fluids in various systems. With their angled design, they facilitate optimal flow control while maintaining durability. Ideal for heavy-duty settings, these valves are engineered to meet high-performance requirements, making them a trusted choice for fluid management in industrial environments.

Size Range: DN50 - DN400
Body Materials: Cast Steel
Body Type: Two Piece
Applications: Steam, Cold and Hot Water, Oil and Aggressive Media, for Higher Temperatures and Pressures.
Pressure Rating: 10 Bar
End Connections: Flanged
Find Out More

Cast Steel Angled JIS Stop Globe Valves

Cast Steel Angled JIS Stop Globe Valves are essential components in industrial fluid control systems. These valves, designed to meet the stringent Japanese Industrial Standards (JIS), offer reliable and efficient regulation of fluid flow. With their durable cast steel construction, they ensure long-lasting performance in demanding environments. These angled stop globe valves are integral to maintaining fluid integrity and controlling its flow within industrial settings, making them a vital choice for precision engineering applications.

Size Range: DN50 - DN300
Body Materials: Cast Steel
Body Type: Two Piece
Applications: Steam, Cold and Hot Water, Oil and Aggresive Media, for Higher Temperatures and Pressures.
Pressure Rating: 10 Bar
End Connections: Flanged
Find Out More

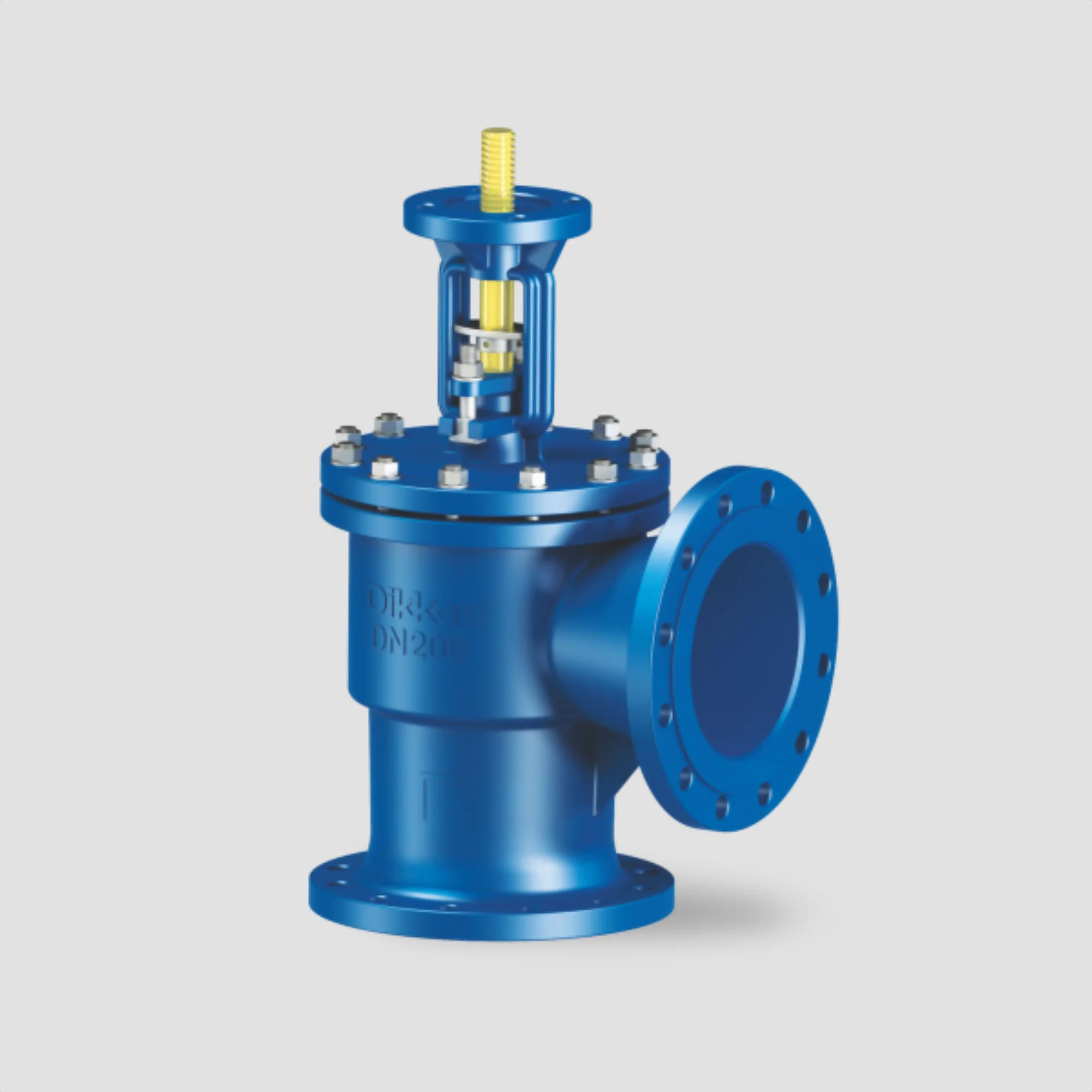

Cast Steel Angled Globe Valves with ISO Top Flange

The Cast Steel Angled Globe Valves with ISO Top Flange offer exceptional performance and reliability in fluid control systems. These valves are designed with precision engineering to ensure smooth and efficient flow regulation, making them a trusted choice for various industrial applications. With their ISO Top Flange, they provide easy integration into existing systems, simplifying installation and maintenance processes.

Size Range: DN15 - DN600
Body Materials: Cast Steel
Body Type: Two Piece
Applications: Hot and Cold Water, Oil and Steam
Pressure Rating: PN10, PN16, PN40
End Connections: Flanged
Find Out More

Frequently Asked Questions

Globe valves are versatile and find application in various industries due to their ability to control the flow of fluids precisely. One of the primary applications of globe valves is for flow regulation. Their design allows for fine control over the flow rate by adjusting the position of the valve plug in relation to the seat.

Globe valves provide precise control over the flow of fluids, making them well-suited for applications where accurate regulation of steam flow is crucial. This is particularly important in steam systems where maintaining a specific pressure or temperature is essential.

Globe valves are versatile components widely used in industries such as water supply, power generation, oil and gas, chemical processing, HVAC, steam systems, shipbuilding, and pulp and paper.

A globe valve is a type of linear motion valve that is widely used in various industries to control the flow of fluids. It consists of a movable disk or plug and a stationary ring seat in a spherical body.

Globe valves can be used for on/off service, acting as isolation valves, and they are also well-suited for throttling applications where precise control of flow rates is required. The design of the valve allows for both functions, making them versatile in different industrial processes.

Globe valves find widespread application in industries such as water supply, power generation, oil and gas, chemical processing, HVAC systems, steam distribution, and shipbuilding. Their versatility makes them suitable for various fluid control applications.

Maintenance of globe valves typically involves tasks like lubricating moving parts, inspecting the valve seat for wear, checking for leaks, and ensuring that the valve operates smoothly. Bolted bonnet designs facilitate easy access for maintenance activities. Regular maintenance ensures the longevity and proper functioning of globe valves in industrial systems.

A globe valve is a type of linear motion valve that is widely used in various industries to control the flow of fluids. It is named for its spherical body shape. The key components of a globe valve include a movable disk or plug and a stationary ring seat inside the valve body. The valve operates by moving the plug or disk relative to the seat to control the flow of fluid through the valve.

Considerations include the type of fluid, pressure and temperature requirements, flow rate, materials compatibility, and the need for on/off or throttling control. Understanding these factors ensures the proper selection of a globe valve for a given industrial application.

Yes, globe valves can be automated for remote control. Common actuators include electric, pneumatic, and hydraulic actuators. Automation enhances efficiency in large-scale industrial processes and allows for integration into sophisticated control systems.

The bolted bonnet design allows easy access to internal components for inspection and maintenance. This feature simplifies tasks such as replacing the valve seat, checking for wear, and performing necessary repairs, contributing to the longevity and reliability of the valve.

Look for markings or labels on the valve body that indicate the manufacturer's name or logo. Check for any model numbers, serial numbers, or other identification codes that can be used for reference or replacement purposes.
